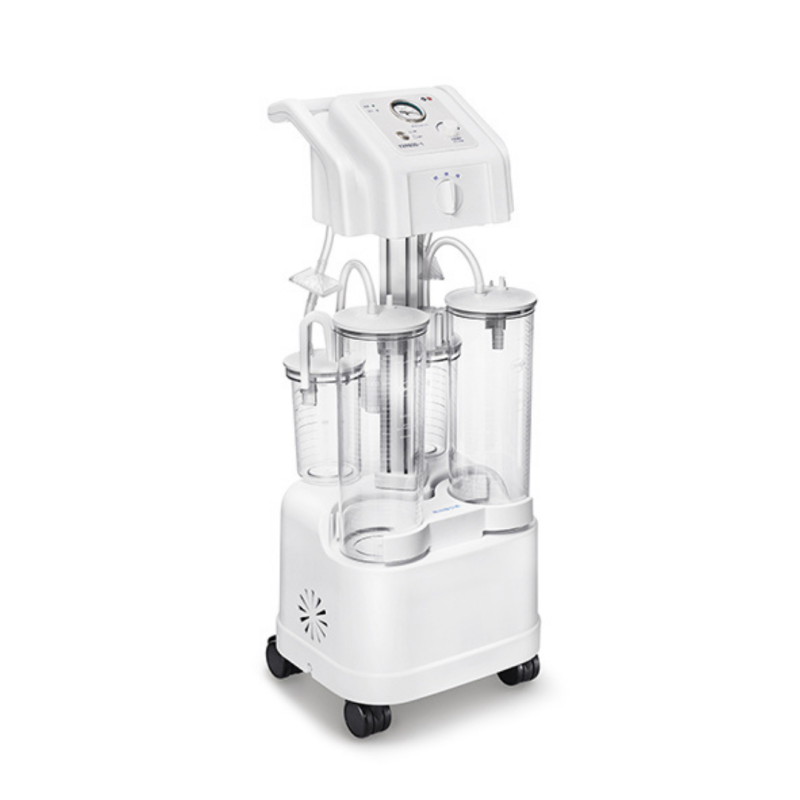

ALMED YX980D-1 Electric Suction Apparatus
Razılaşma ilə
Model YX980D-1 Electric Suction Apparatus offers high vacuum and high flow with double piston cylinders. It rapidly builds up a powerful vacuum, and is especially used for surgical operations where large quantities of fluid must be suctioned out quickly. Advanced design idea as well as a perfect configuration performs satisfactory functions.
1. Oil-less piston pump, maintenance free, flow rate can reach to over 80L/min, rapid vacuum rising.
2. Overflow protection device prevents liquid from entering into the inner pipe and pump.
3. Air filter protects pump from being polluted.
4. Transparent and high intensity polycarbonate plastic jar, high capacity and easy to clean.
5. Can select empty container fast during operation by changeover valve, rinsing cup is for placing catheter during operation.
6. The accessory box on the back of the case is for laying foot switch, power cord, etc. which is more convenient during movement or storage.
Specification parameter
1. Max vacuum: ≥0.09MPa (680mmHg)
2. Adjustable vacuum range: 0.02MPa(150mmHg)～Max Vacuum
3. Flow rate: ≥80L/min
4. Noise: ≤65dB(A)
5. Jar: 4000ml×2+1000ml×2 (PC) Can be changed to 3000ml×2+1000ml× 2
6. Power supply: ～220V 50Hz
7. Input power: 350VA
8. Dimension: 390mm×330mm×982mm
9. Package Dimension: 500mm×440mm×1075mm
10. G.W./N.W.: 27kg/23.5kg
