M 420 P SS Laboratory Oven (48 Liter, with Fan)
Razılaşma ilə
M 420 P S Laboratory Oven (48 Liter)
Razılaşma ilə
1. What is the capacity of the M 420 P Laboratory Oven?
The oven has a chamber capacity of 48 liters, suitable for medium-scale laboratory tasks.
2. How is temperature uniformity achieved in this oven?
The oven uses natural air circulation, ensuring uniform heat distribution throughout the chamber.
3. Is the M 420 P Laboratory Oven safe for extended use?
Yes, the oven features a safety thermostat with liquid expansion, preventing overheating and ensuring safe operation for prolonged periods.
4. What materials are used in the chamber and casing?
The chamber is made of stainless steel for durability, while the casing is constructed from sheet steel finished in stoved enamel paint.
5. What are the power requirements for this oven?
The M 420 P operates at 1000 W with a power supply of AC 190-240 V / 50-60 Hz.
| Feature | Details |
|---|---|
| Working Temperature Range | Ambient temperature +5°C to 250°C |
| Capacity (Chamber Volume) | 48 liters |
| Type of Thermoelement | J-type |
| Temperature Control | PID Digital control |
| Load Switching Element | SSR (Solid State Relay) |
| Thermostat Setting Increments | 1°C steps |
| Thermostat Working Accuracy | ±1°C |
| Thermometer Display Increments | 1°C steps |
| Chamber Temperature Accuracy | ±2°C |
| Circulating | Natural air circulation ensuring homogeneous heat distribution |
| Postpone/Process Time | 1 min – 59 hours 59 min |
| Timing Begins | When the set temperature is reached |
| Safety Measure | Safety thermostat with liquid expansion (50-300°C) |
| Casing Material | Sheet steel finished in stoved enamel paint |
| Chamber Material | Stainless steel |
| Insulation Material | Rock wool |
| Shelf | 2 perforated stainless steel |
| Fuse | 6 Amps |
| Power Rating | 1000 W |
| Power Supply | AC 190-240 V / 50-60 Hz |
| Chamber Dimensions (W x H x D) | 42 x 35 x 33 cm |
| Overall Dimensions (W x H x D) | 71 x 54 x 49 cm |
| Net Weight | 33 kg |
| Gross Weight | 38 kg |

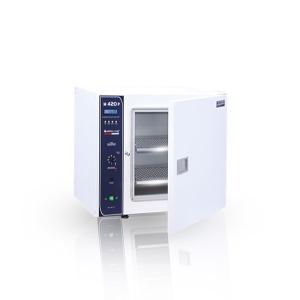

The M 420 P Laboratory Oven is designed to deliver precise and reliable performance for laboratory heating and drying applications. With a chamber capacity of 48 liters and a temperature range from ambient +5°C to 250°C, this oven is an excellent choice for medium-sized laboratory operations.
Featuring natural air circulation, it ensures even heat distribution throughout the chamber, making it ideal for applications requiring homogeneous conditions. Equipped with PID Digital control and a Solid State Relay (SSR), the M 420 P provides exceptional temperature stability and user-friendly operation.
The chamber is constructed from stainless steel, offering durability and resistance to corrosion, while the rock wool insulation minimizes energy consumption. Advanced safety features, including a liquid expansion thermostat, ensure secure and efficient operation, even under demanding conditions.
