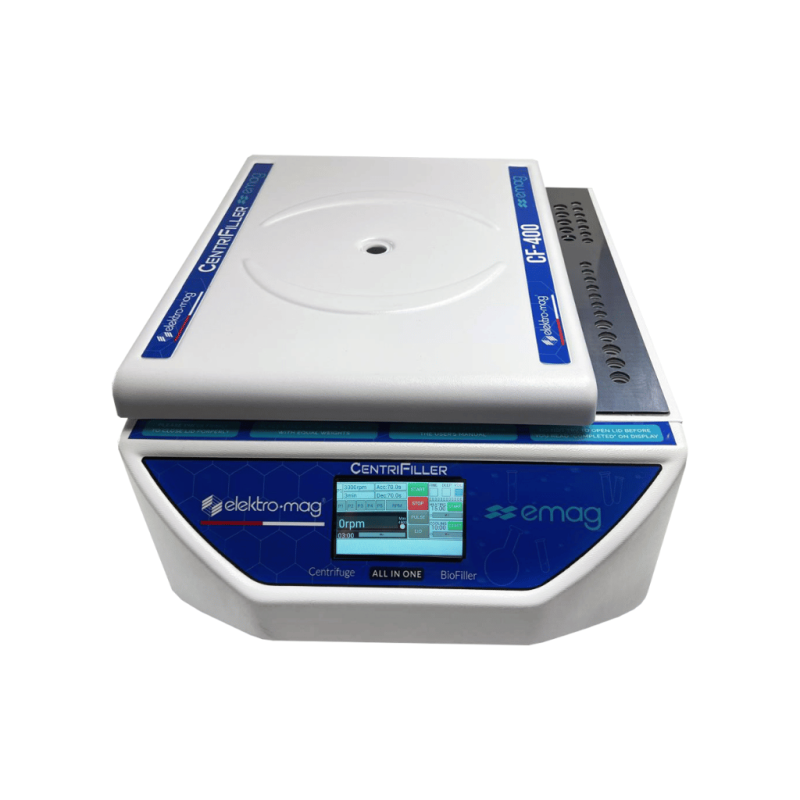

CF 400 Full Swing-out Rotor Centrifiller
Razılaşma ilə
Key Features
User-Friendly Interface: Equipped with a 4.3” TFT Touch Screen Display for intuitive speed, RCF, and time control.
High Efficiency: Operates at speeds up to 4500 rpm and achieves maximum RCF of 3629 x g.
Advanced Safety: Includes a lid safety switch and lock for secure operation.
Plasma Gel Support: Features heating and cooling options to handle autologous cell filling volumes.
Versatile Programming: Offers 5 programmable settings for consistent results.
Robust Design: Built with durable materials like steel rotors and enamel-finished casing for longevity.
Applications
Ideal for clinical, research, and industrial laboratories, the CF 400 centrifuge is perfect for plasma gel preparation, cell separation, and other precise centrifugation tasks. Its combination of speed, precision, and safety makes it a reliable choice for professionals.
| Feature | Description |
|---|---|
| Capacity/Standard Rotor | 8 x 15 mL |
| Optional Rotors | 4 x 50 mL |
| Rotor Type | Full Swing-Out |
| Maximum Speed | 4500 rpm |
| Maximum RCF | – 8 x 15 mL / 3175 x g – 4 x 50 mL / 3629 x g |
| Speed Setting Increment | 10 rpm |
| Speed Setting Range | 500 – 4500 rpm |
| Acceleration & Deceleration Time | 20–150 seconds in steps of 1 second |
| Timer | Starts when set speed is achieved |
| Timer Range | 1–99 minutes (1-minute step) |
| Continuous Running Mode | Available |
| RCF Value Entry | Available |
| Short Period Running | Pulse button enabled |
| Number of Programs | 5 |
| Plasma Gel Heating | Supports 3 different autologous cell filling volumes |
| Plasma Gel Cooling | Available |
| Fuse | 6 Amps |
| Power Rating | 350 W |
| Safety Measures | Lid safety switch, lid lock |
| External Speed Reading | Available |
| Rotor Material | Steel |
| Tube Socket (Godet) Material | Acetal Resin |
| Casing Material | Sheet steel finished in stoved enamel paint + ABS |
| Chamber Material | Sheet aluminum finished in stoved enamel paint |
| Motor Type | Maintenance-free brushless motor |
| Power Supply | AC 190–240 V / 50–60 Hz |
| Overall Dimensions (W x H x D) | 44 x 56 x 25.5 cm |
| Net Weight | 28 kg |
| Gross Weight | 30 kg |
The CF 400 Full Swing-Out Rotor Centrifuge is a high-performance laboratory centrifuge designed for precise and efficient sample processing. Its advanced swing-out rotor technology ensures superior sample separation and accommodates diverse applications with a wide range of tube capacities.
